[902-0118-000] DYNAMIXEL XM430-W350-R
The DYNAMIXEL X-Series is a new line-up of high performance networked actuators.
For more detailed information, please visit the DYNAMIXEL X-Series Product Information page.
■ Basic Features
• Improved Torque, Compact Design
• Enhanced Durability and Expandability
• Hollow Back Case Minimizes Cable Stress (3-Way Wiring)
• Frames Directly Screwed onto the Case (No Nuts Needed)
• Improved Aluminum Case Heat Sink
• 6 Operating Modes
• Current-Based Torque Control (4096 steps, 2.69mA/step)
• Profile Control for Smooth Motion Planning
• Trajectory Data and Moving Status (In-Position, Following Error, etc.)
• Energy Efficient (Standby Current Reduced from 100mA to 40mA)
■ Various Cabling Methods
■ Key Names
■ Model Numbering
■ Package Contents
|
Description |
Quantity |
|
|
DYNAMIXEL |
XM430-W350-R |
1 |
|
HORN |
HN12-N101 |
1 |
|
WASHER |
Teflon Washer (for Horn Assembly) |
1 |
|
CABLE |
Robot Cable-X4P 180mm |
1 |
| Robot Cable-X4P (Convertible) 180mm |
1 |
|
|
BOLT/NUT |
Wrench Bolt (WB M2.5*4) |
16 |
| Wrench Bolt (WB M2.5*6) |
1 |
|
| Wrench Bolt (WB M2*3) |
10 |
|
|
ETC |
Spacer Ring |
8 |
■ H/W Specifications
| Model Number | XM430-W350-R | ||
| Weight (g) | 82 | ||
| Dimensions (mm) | 28.5 x 46.5 x 34 | ||
| Gear Ratio | 353.5 : 1 | ||
| Operating Voltage (V) |
11.1 |
12 |
14.8 |
| Stall Torque (N.m) |
3.8 |
4.1 |
4.8 |
| Stall Current (A) |
2.1 |
2.3 |
2.6 |
| No Load Speed (RPM) |
43 |
46 |
57 |
| MCU | ST CORTEX-M3 ( STM32F103C8 @ 72MHZ, 32BIT) | ||
| Position Sensor | Contactless Absolute Encoder (12bit, 360°) by AMS | ||
| Motor | Coreless Motor | ||
| Resolution | 0.088° x 4,096 steps | ||
| Operating Range | Position Control Mode : 360°
Extended Position Control Mode : 512 turns Velocity Control Mode : Endless Turn |
||
| Input Voltage (V) | 10~14.8 (Recommended : 12) | ||
| Operating Temperature (°C) | -5 ~ 80 | ||
| Command Signal | Digital Packet | ||
| Protocol Type | RS485 Asynchronous Serial Communication (8bit, 1stop, No Parity) | ||
| Link (Physical) | RS485 Multidrop Bus (Daisy Chain) | ||
| ID | 253 (0~252) | ||
| Baud Rate | 9600 bps ~ 4.5 Mbps | ||
| Feedback | Position, Velocity, Current, Real-Time Tick, Trajectory, Temperature, Input Voltage, etc. | ||
| Material | Case : Metal (Front, Middle)
Engineering Plastic (Back) Gear : Metal |
||
| Standby current (mA) | 40 | ||
■ Default Setting
ID : 1
Baud Rate : 57,600bps
*Please make necessary modifications to ID, baud rate, etc. after purchase.
**PC Interface : USB2Dynamixel (Molex-JST Convertible Cable is required)
■ Hyperlinks
Frame, Horn, Bearing Compatible Compatible Chart : Click Here
Controller Compatibility Chart : Click Here
Download Drawing : Click Here
Dynamixel SDK : Click Here
OpenCM IDE : Click Here
Software RoboPlus (R+) : Click Here
Link to e-Manual : Click Here
■ Caution
The DYNAMIXEL X-Series adopted a new gold-plated
JST connector for secure and reliable communication.
For more information, please see the [DYNAMIXEL Connector Standard] page on the e-Manual.

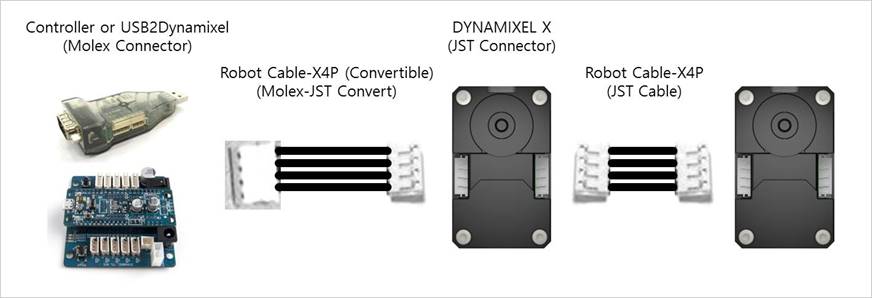

To control DYNAMIXEL X-Series actuators via OpenCM or USB2Dynamixel,
please use the JST-Molex Convertible Cable enclosed in the package.
